Atomic structure

This lesson builds atomic models and evidence for GCSE Physics.

Use the core lesson first, then match the exam-board guidance to your school route. Many pupils meet this content through Combined Science as well as Separate Physics.

Good forSeparate Physics and Combined Science atomic structure routes

FocusAtomic models and evidence

Time45-60 minutes

EquipmentParticle model notes and diagram practice.

Paper fitPaper 1 focus on most GCSE Physics routes

TierFoundation and Higher core

Practical linkNo required practical focus

Maths tagsM1 units and equation sense

What you will learn

Describe the plum pudding model of the atom.
Explain why alpha scattering challenged the plum pudding model.
Describe the nuclear model: tiny positive nucleus and mostly empty space.
Use evidence to explain why scientific models change.

Exam-board fit

RouteSeparate Physics and Combined Science atomic structure routes

PaperPaper 1 focus on most GCSE Physics routes

TierFoundation and Higher core

Specification fitAtomic structure: Atomic models and evidence

Practical linkNo required practical focus

Maths ladderM1 units and equation sense

Exact paper labels and specification-point numbering vary by board and cohort, so match this lesson to your school route before using past-paper questions.

Atomic evidence tasks supplied on this page

Use the model-comparison and alpha-scattering prompts to practise AO2 and AO3 evidence questions.

Clear explanation

The plum pudding model described the atom as positive material with electrons embedded in it. It did not include a tiny central nucleus.

In alpha scattering, most alpha particles passed straight through thin gold foil, but a small number were deflected through large angles.

The evidence suggested atoms are mostly empty space, with most mass and positive charge concentrated in a tiny nucleus. This led to the nuclear model.

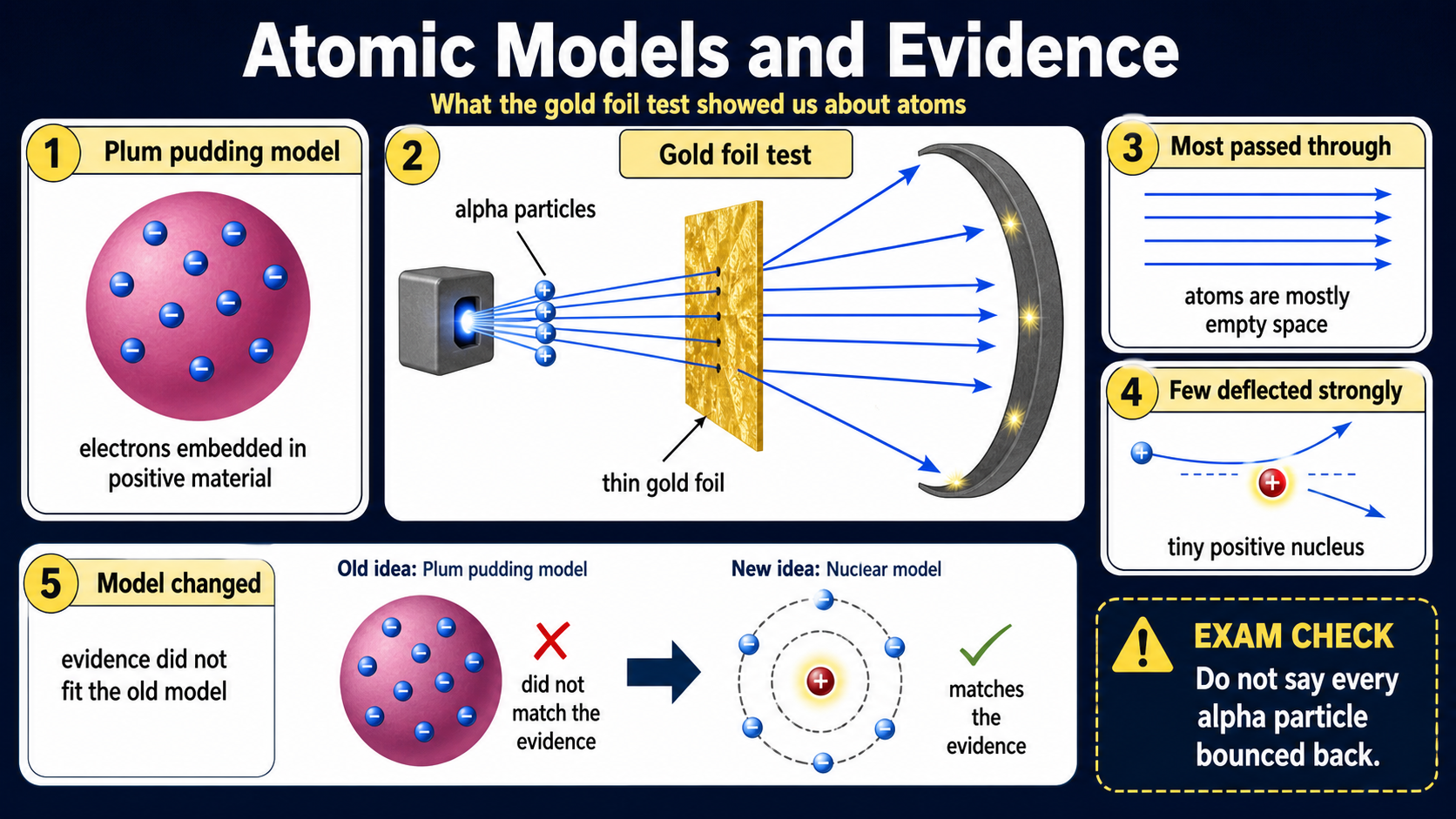

Key diagram

Diagram: the particle paths connect each observation to the nuclear model conclusion.

Worked examples

Using scattering evidence

Most alpha particles passed through foil.

A few were deflected strongly.

A strong deflection needs a concentrated positive charge repelling the positive alpha particle.

Answer: This supports a small, positive nucleus rather than positive charge spread through the whole atom.

Quick checks

Choose an answer, then check your thinking.

1. Which model came before the nuclear model?

Plum pudding model Black hole model Circuit model

2. What did the few large alpha deflections suggest?

A tiny concentrated positive nucleus No empty space Atoms are all liquid

Practice questions

Question 1

Describe the plum pudding model in one sentence.

Reveal answer and marking guidance

Answer: Electrons embedded in a spread-out positive atom.

Marking: Credit electrons in positive material.

Question 2

What did most alpha particles passing through foil suggest?

Reveal answer and marking guidance

Answer: Atoms are mostly empty space.

Marking: Credit empty space or very small nucleus compared with atom.

Question 3

What did the few alpha particles deflected by large angles suggest?

Reveal answer and marking guidance

Answer: A small, dense, positively charged nucleus.

Marking: Credit concentrated mass/positive charge.

Question 4

Why is alpha scattering a good AO3 evidence example?

Reveal answer and marking guidance

Answer: It shows a model being changed because experimental evidence did not fit the old model.

Marking: Credit model change due to evidence.

Exam practice ladder

AO1 fluencyRecall the key definition, unit, equation or model before using the lesson questions.

AO2 applicationApply atomic models and evidence to an unfamiliar device, practical setup or data description.

AO3 analysisUse evidence, graph features, uncertainty, method quality or conclusion wording where the question asks you to evaluate.

Maths skillM1 units and equation sense

Answers and marking guidance

The exact practice answers are hidden under each question so you can try first. For this lesson, marks come from using the correct physics model, choosing the right equation where needed, keeping units with values, and explaining changes with precise words such as transfer, resultant force, acceleration, evidence and uncertainty.

Common mistakes

Saying the plum pudding model already had a nucleus.
Forgetting alpha particles are positively charged.
Thinking every alpha particle bounced back.
Writing that models change because scientists guess, not because evidence improves.

Exam-board guidance

All supported routes assess the core physics idea, but they may group topics, practicals and paper wording differently.

AQA GCSE Physics

AQA GCSE Physics: use this lesson for atomic models and evidence, then check whether your class is taking Separate Physics or Combined Science.

OCR GCSE Physics

OCR GCSE Physics: the core physics idea is shared, but Gateway and Twenty First Century may organise questions differently.

Pearson Edexcel GCSE Physics

Pearson Edexcel GCSE Physics: practise the concept, the equation use and the practical language because questions often connect them.

Eduqas GCSE Physics

Eduqas GCSE Physics: learn the core explanation and practise applying it to unfamiliar contexts, data and practical questions.

WJEC Wales

WJEC Wales: check whether your class is using the current GCSE Physics route or a newer science route, then use this lesson for the shared physics idea.

CCEA GCSE Physics

CCEA GCSE Physics: connect the idea to your unit and remember that practical skills are assessed directly.

Extension challenge

Write a six-mark explanation of how alpha scattering changed the model of the atom, using the words evidence, deflected, nucleus and empty space.

Reveal answer

Example answer: A strong extension response names the physics model, uses accurate units and explains why the evidence supports the conclusion.
