Lesson 33 · GCSE / Key Stage 4 · Physics

Electromagnetic spectrum applications

Link electromagnetic spectrum regions to communication, heating, imaging, medicine and hazards.

Qualification: GCSE Subject: Physics Radiation Separate Physics and Combined Science

Waves

This lesson builds electromagnetic spectrum uses and hazards for GCSE Physics.

Use the core lesson first, then match the exam-board guidance to your school route. Many pupils meet this content through Combined Science as well as Separate Physics.

Good forSeparate Physics and Combined Science
FocusElectromagnetic spectrum uses and hazards
Time45-60 minutes
EquipmentSpectrum order notes and calculator if using frequency or wavelength.
Paper fitPaper 2 focus on most GCSE Physics routes
TierFoundation and Higher core
Practical linkNo required practical focus
Maths tagsM3 unit conversions

What you will learn

  • Recall the order of the electromagnetic spectrum.
  • Link spectrum regions to common uses.
  • Compare ionising and non-ionising radiation hazards.
  • Explain why different wavelengths are suited to different applications.

Exam-board fit

RouteSeparate Physics and Combined Science
PaperPaper 2 focus on most GCSE Physics routes
TierFoundation and Higher core
Specification fitWaves: Electromagnetic spectrum uses and hazards
Practical linkNo required practical focus
Maths ladderM3 unit conversions

Exact paper labels and specification-point numbering vary by board and cohort, so match this lesson to your school route before using past-paper questions.

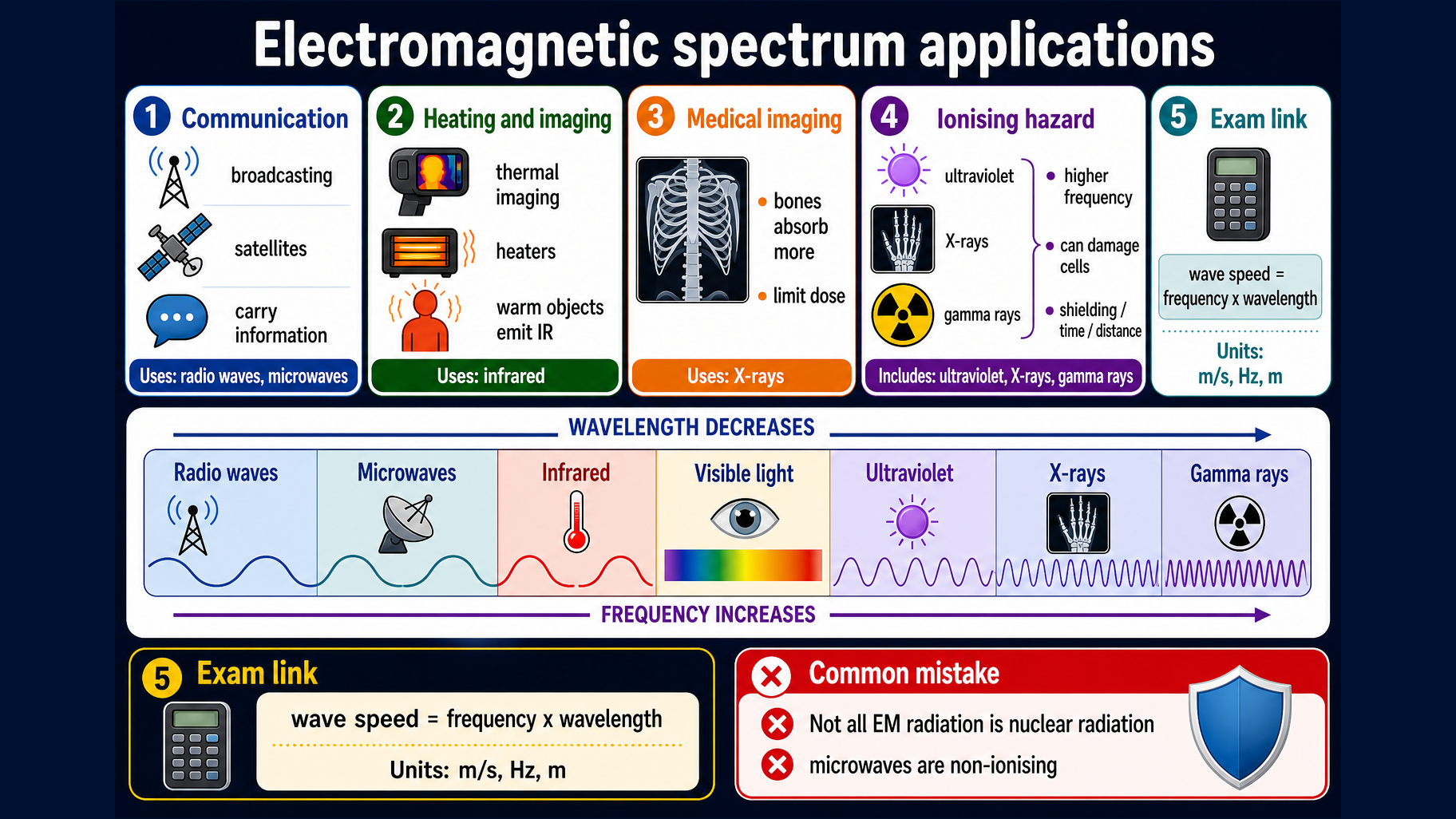

Application cards supplied on this page

Use the radio, microwave oven, infrared camera, X-ray and gamma examples to practise matching wave properties to uses.

Clear explanation

All electromagnetic waves travel at the same speed in a vacuum, but they have different frequencies and wavelengths.

Radio waves and microwaves are useful for communication. Infrared transfers thermal energy and is used in heaters and thermal imaging. Visible light is detected by the eye.

Ultraviolet, X-rays and gamma rays have higher frequencies. X-rays and gamma rays are ionising, so exposure must be controlled.

Worked examples

Choosing a medical wave

A doctor needs to image bones inside the body.

Visible light does not pass through the body well.

X-rays pass through soft tissue more easily than bone and can expose a detector.

Answer: X-rays are suitable, but exposure must be limited because they are ionising.

Quick checks

Choose an answer, then check your thinking.

1. Which electromagnetic radiation is commonly used for thermal imaging?

2. Which pair is ionising and needs careful dose control?

Practice questions

Question 1

Name one use of microwaves.

Reveal answer and marking guidance

Answer: Satellite communication or cooking food.

Marking: Credit a valid microwave use with a sensible explanation if given.

Question 2

Why are X-rays useful for imaging broken bones?

Reveal answer and marking guidance

Answer: They pass through soft tissue more easily than bone, so bones show on the image.

Marking: Credit different absorption by tissue and bone.

Question 3

State one hazard of ultraviolet radiation.

Reveal answer and marking guidance

Answer: It can damage skin cells and increase risk of skin cancer.

Marking: Credit skin or eye damage from UV.

Question 4

Why are radio waves useful for broadcasting?

Reveal answer and marking guidance

Answer: They can travel long distances and carry information.

Marking: Credit long-distance communication and information transfer.

Exam practice ladder

AO1 fluencyRecall the key definition, unit, equation or model before using the lesson questions.
AO2 applicationApply electromagnetic spectrum uses and hazards to an unfamiliar device, practical setup or data description.
AO3 analysisUse evidence, graph features, uncertainty, method quality or conclusion wording where the question asks you to evaluate.
Maths skillM3 unit conversions

Answers and marking guidance

The exact practice answers are hidden under each question so you can try first. For this lesson, marks come from using the correct physics model, choosing the right equation where needed, keeping units with values, and explaining changes with precise words such as transfer, resultant force, acceleration, evidence and uncertainty.

Common mistakes

  • Putting the spectrum in the wrong order.
  • Calling all electromagnetic radiation nuclear radiation.
  • Saying microwaves are always ionising.
  • Giving uses without linking to wave properties.

Exam-board guidance

All supported routes assess the core physics idea, but they may group topics, practicals and paper wording differently.

AQA GCSE Physics

AQA GCSE Physics: use this lesson for electromagnetic spectrum uses and hazards, then check whether your class is taking Separate Physics or Combined Science.

OCR GCSE Physics

OCR GCSE Physics: the core physics idea is shared, but Gateway and Twenty First Century may organise questions differently.

Pearson Edexcel GCSE Physics

Pearson Edexcel GCSE Physics: practise the concept, the equation use and the practical language because questions often connect them.

Eduqas GCSE Physics

Eduqas GCSE Physics: learn the core explanation and practise applying it to unfamiliar contexts, data and practical questions.

WJEC Wales

WJEC Wales: check whether your class is using the current GCSE Physics route or a newer science route, then use this lesson for the shared physics idea.

CCEA GCSE Physics

CCEA GCSE Physics: connect the idea to your unit and remember that practical skills are assessed directly.

Extension challenge

Create a table with every spectrum region, one use and one possible hazard or safety control.

Reveal answer

Example answer: A strong extension response names the physics model, uses accurate units and explains why the evidence supports the conclusion.

Next lesson

Next, continue with Nuclear Equations, Half-Life and Safety.
